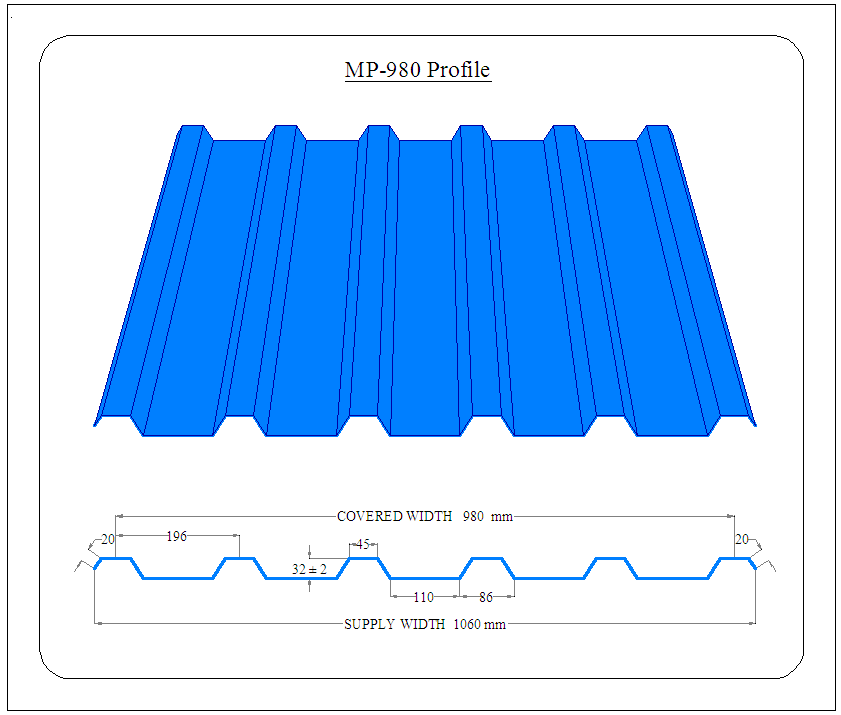

MP-980 is the superior,world-class,finest roofing and cladding profile in India for all span horizontal and vertical applications. Our fully automatic highspeed MP-980 roll forming line with hydraulic controls,offers superior quality product.
| Coil input Width | 1220 mm |
| Covered width | 980 mm |
| Supply Width | 1060±10 mm |
| Pitch | 196 mm |
| Crest Height | 32 ± 2mm |
| Crest Width | 45 mm |
| Lip | 10 mm |
Thickness : 0.35, 0.42, 0.45, 0.47, 0.50, 0.55, 0.60, 0.63, 0.80 & 1mm

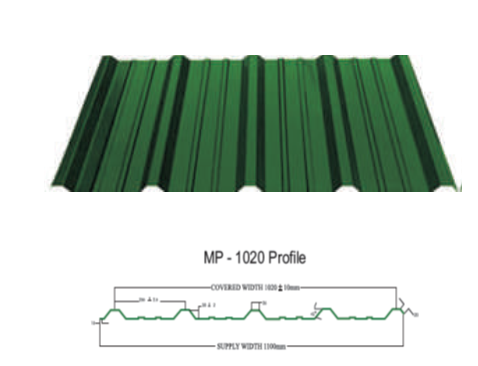

MP-1020 is a light weight wide spantrapezoidal shaped roofing profile designed for economical application which gives a esthetical solution to all your needs. This profileisalsoavailable in tile form.
| Coil input Width | 1220 mm |
| Covered width | 1020 mm |
| Supply Width | 1060±10 mm |
| Pitch | 255 mm |
| Crest Height | 28 ± 2mm |
| Crest Width | 26 mm |
| Lip | 10 mm |
Thickness : 0.35, 0.42, 0.45, 0.47, 0.50, 0.55, 0.60, 0.63, 0.80 & 1mm

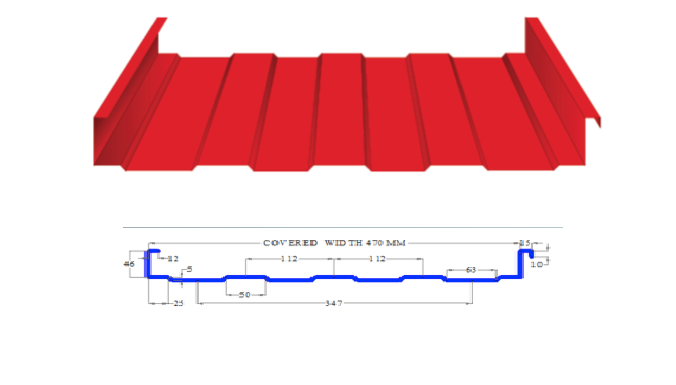

MP – 470 is a Standing seam profile. It is double lock, 100 % leak proof system with 360 degree seaming which is aesthetically superior and has high strength.

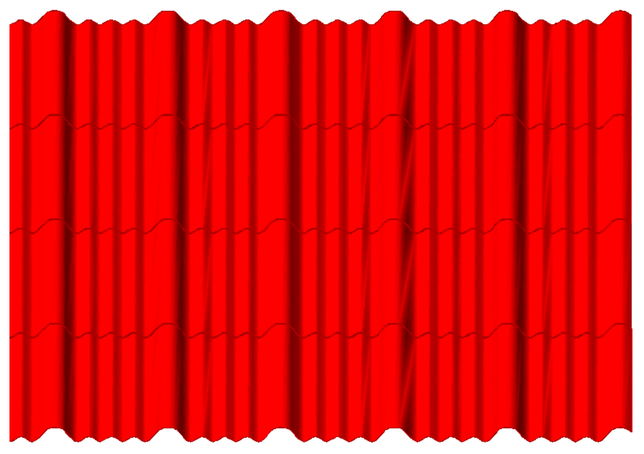

MP-Wave tile profile blends the classic look of architecture with modern material. This metal roofing sheet has low maintenance cost, superior weather resistance and long life. It is ideally suited to commercial buildings, resorts, farm houses, hotels, residential houses and other public area residential use. It helps save money by reducing assembling time and workmanship by not breaking, cracking or leaking and being environmentally-friendly.
| Coil input Width | 1220 mm |
| Covered width | 1000 mm |
| Supply Width | 1100±10 mm |
| Pitch | 200 mm |
| Crest Height | 28 ± 2mm |

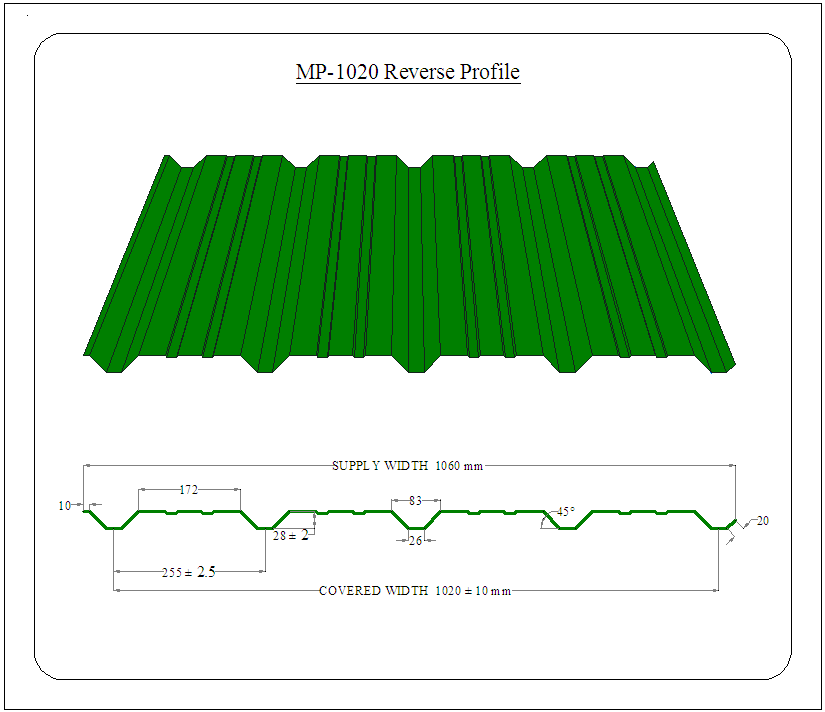

MP – 1020 can be made in reversible profile as per the Client’s requirement for an altogether different aesthetic appeal.
| Coil input Width | 1220 mm |
| Covered width | 1020 mm |
| Supply Width | 1060±10 mm |
| Pitch | 255 mm |
| Crest Height | 28 ± 2mm |
| Crest Width | 26 mm |
| Lip | 10 mm |

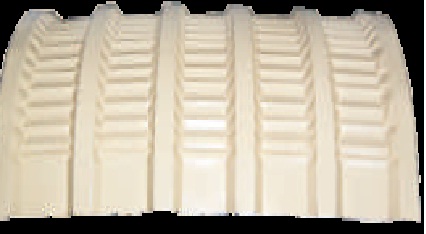

MP – 980 and MP-1020 profiles are also available in concave as well as convex curved sheets to give architectural features to the building. The radius is as nominated by you down to minimum recommendation of 500mm.

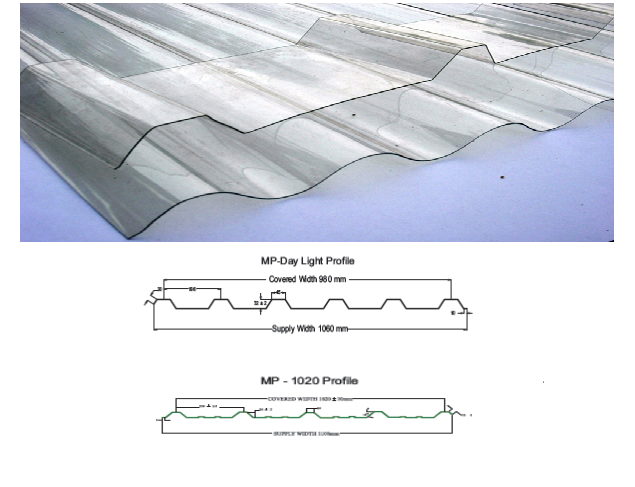

MP- Skylight is rigid polycarbonate transparent roof glazing sheets available in required lengths matching MP-980 or MP-1020 profiles made out of finest lexan polycarbonate sheets. They offer light transmission between 50%-90% depending on thickness. They also come as one-side embossed thereby increasing the light transmission inside the shed. Their thickness range is between 1mm to 6mm, however we usually recommend 2mm thickness as best match with the MP-980 profile type.
| Coil input Width | 1220 mm |
| Covered width | 1020 mm |
| Supply Width | 1060±10 mm |
| Pitch | 255 mm |
| Crest Height | 28 ± 2mm |
| Crest Width | 26 mm |
| Lip | 10 mm |

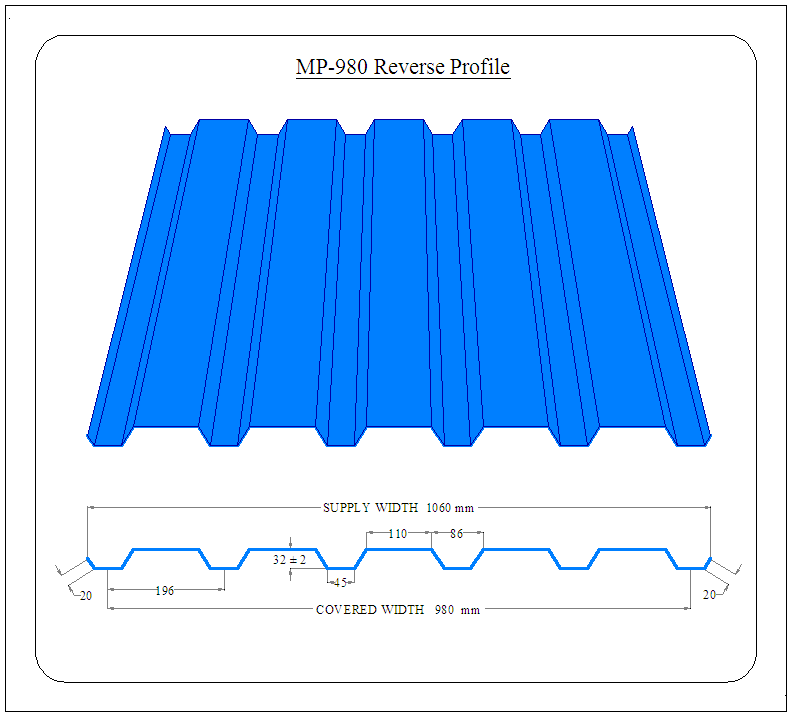

MP – 980 can be made in reversible profile as per the Client’s requirement for an altogether different aesthetic appeal.
| Coil input Width | 1220 mm |
| Covered width | 980 mm |
| Supply Width | 1060±10 mm |
| Pitch | 196 mm |
| Crest Height | 32 ± 2mm |
| Crest Width | 45 mm |
| Lip | 10 mm |
